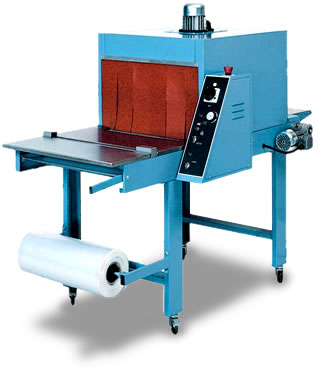

Manual and Semi Automatic Sleeve Sealers

Compact single roll manual sleeve sealing machines perfect for micro breweries and repacking warehouses
Pneumatic pusher and electronically controlled hot blade seal/cut/seal jaw on semi automatic models.
Mounted on castors for ease of movement from one workstation to another
Used for transit wrapping collation packs of product, eg cans/bottles in trays, using polythene shrink films
Operating speeds approximately 5 packs per minute

Model	MA 500M	MA 700M	CAM 500S	CAM 700S
Max. Seal Width	500mm	700mm	500mm	700mm
Max. Product Height	280mm	380mm	270mm	400mm
Tunnel Apperture	475mm x 330mm	610mm x 440mm	480mm x 300mm	700mm x 500mm
Power Requirements	3 Phase 16 amp/Ph.	3 Phase 16 amp/Ph.	3 Phase 16 amp/Ph.	3 Phase 32 amp/Ph.
Pneumatic Requirements	N/a	N/a	6 – 8 Bar	6 – 8 Bar
